Line, column, square … the tactical formations available to infantry of the Napoleonic Wars, South American Wars of Liberation, and Carlist Wars. Line is pretty straight forward but I thought I’d describe the others, in particular column. People think of columns as long and thin, and some were, but most columns of the Napoleonic Wars were usually stubby. I use the post 1808 French as the main example because the Spanish followed their lead, but the other nations were similar.
[Note: I wrote this while Musing on unit types in Bolivar’s Very Bad Day. Battalion formations were very much on my mind as I design Bolivar’s Very Bad Day.]
Column, line, and square
Infantry battalions only had three tactical formations: columns to facilitate movement, lines to maximise firepower, and squares to provide a defence against cavalry (Haythornthwaite, 2001, p. 85). But there were lots of variations, particularly of columns. I’ll also briefly consider French blobs.
In this post I focus on the French in the period 1808-1815. There are a couple of reasons for this: French companies were colour coded which helps in the diagrams and the Spanish used the same organisation and formations.
A number of progressive Spanish officers had been advocating adopted the French columnar tactics from 1796 (Esdaile, 2012) and in 1803 the Spanish adopted the French regulations of 1791 (Cronin & Summerfield, 2014). The same regulations the French used during the entire Napoleonic Wars. And they seemed to follow the 1808 reorganisation as well, at least by 1810. So, from about 1810, the six company battalion was also the most common Spanish organisation in the Peninsular and in South America. The Spanish also used the same structure in the later Carlist Wars. So whatever I learn about the French can apply to the Spanish post 1810. Of course the same principle apply to other nations, e.g. British and Portuguese, just the number of companies changed. That had implications for how the other nations changed formation, but they all used line, column, and square.
The 1791 regulations remained in force in the French army throughout the revolutionary and Napoleonic period (Griffith, 2007). Although frowned on by the revolutionary political masters, these regulations were used by any serious military figure. The 1808 reorganisation did to change the regulations but did reduce the number of companies per battalion to six: four fusilier, a grenadier and a voltigeur company. The reorganised battalion had a frontage of 171 yards (156 metres).
Paddy Griffith described the role of lines and columns in the 1791 regulations (Griffith, 2007, p. 10):
A commander would always wish to fight with his troops in line presenting a solid front of fire to the enemy. However, it was also accepted that he might need to use various complex combinations – including variants of the column – to bring them forward into the front line over broken ground or from the roads on which they had originally approached the battlefield. The columns would ideally deploy into firing lines just before they came into musketry range of the enemy.
Formation changes could be conducted quite quickly outside combat. For example, one of the more tricky changes from column to square would take only 60 seconds (Nafziger, 1996). But any unit that tried to change formation in the face of enemy fire was in trouble (Griffith, 2007). Charging cavalry would close to contact in 60 seconds.

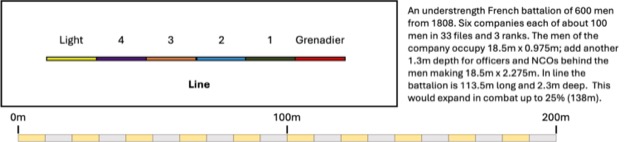

The example in the illustration is an understrength French battalion of 600 men following the 1808 reorganisation. This was the battalion structure used in the Peninsular War. The battalion has six companies/platoons each of about 100 men in 33 files and 3 ranks. The musketeers of each company occupy 18.5m x 0.975m; add another 1.3m depth for officers and NCOs behind the men making 18.5m x 2.3m.
Note: a company was an administrative unit (Nafziger, 1996). In contrast platoons were used in the field. Each company formed one platoon, but men were moved around to make the platoons a similar size.
Line
Line was the fighting formation – for fire action and assault (Rothenberg, 1997). It was used for both attack and defence (Rogers, 1974). As Paddy Griffith said (Griffith, 2007, p. 10):
A commander would always wish to fight with his troops in line presenting a solid front of fire to the enemy.
In defence a line should have been supported by other troops (Griffiths, 2007, p. 23):
The preferred formation for defence was always the deployed line, covered by skirmishers, artillery and preferably cavalry too, with columns held in reserve
When discussing Marshal Michael Ney’s “Instructions for the Troops Composing the Left Corps”, Arnold (2004) points out “All of the discussion of charges specifies a charge in line with the bayonet”. Concerning the principles of a charge in line Ney writes: “a French commander ought never to hesitate in marching against the enemy with the bayonet, if the ground is at all adapted to a charge in line with one or more battalions”. He notes how troops who stop their advance to open fire are very difficult to get moving again.
Infantry in line could stop cavalry to the front, for example Spanish infantry the Battle of Medellin (29 Mar 1809) repulsed the charge of two regiments of French dragoons (Esdaile, 2012). However, this was by no means certain and the flanks of infantry in line were vulnerable to cavalry. Lines threatened by cavalry would normally form square. Famously, Latour-Maubourg cavalry destroyed Colborne’s brigade at the Battle of Albuera (16 May 1811) when the 1st Vistula Legion Lancers and the 2nd Hussars ripped through Colborne’s exposed right flank and annihilated three of Colborne’s regiments within minutes; the fourth, the 31st Regiment of Foot, had sufficient time to form square and survived (Dempsey, 2008; Edwards, 2008; Oliver & Partridge, 2007).
Lines struggled when moving in difficult terrain; the advantage of columns, over lines, is always that they are better at manoeuvre, particularly in rough terrain (Arnold, 2004; Griffith, 1990, 2007; Nafziger, 1996; Rothenberg, 1997). Ranks would become ragged, the battalion might bow in the middle, or perhaps even break completely in half (napoleonistyka: Infantry Tactics and Combat (Part 2)).
Officially infantry formed 22 inches (56cm) per man (Haythornthwaite, 2008; Nosworthy, 1995). So a company of 60 men in two ranks would be 18 yards (16.75m) and a battalion of 600 men in two ranks about 180 yards (167.7m). However, these were theoretical frontages, and in battle the individuals spacings could rise to 27 (67cm) or even 30 inches (76cm) per man. [Nafziger (1996) agrees 22 inches for the British but says French were 26 inches. I go with the majority at 22 inches for the French with likelihood to expand in battle.]
The intervals between 1st, 2nd and 3rd rank were 0.325m for French infantry (Nafziger, 1996; napoleonistyka: Infantry Tactics and Combat (Part 2)). But these intervals varied from army to army. I’ve used Nafziger (1996) for the paces/inches and napoleonistyka for the metric conversation (although I’d get different measurements if I did the calculations). From smallest gap to largest:
French infantry – 13 inches (0.325 m)
Russian infantry – 14 inches (0.35 m)
British infantry – 1 pace (0.63 m)
Prussian infantry – 26 inches (0.66 m)
Austrian infantry – 2 paces (49.8 inches) (1.25 m)
The interval between 3rd rank and NCOs/officers behind was 1.3 m or 2 paces.
Taking all of that together, a nominal French battalion of 600 men from 1808. Each company has about 100 men in 33 files and 3 ranks. So the men of the company occupy 18.5m x 0.975m; add another 1.3m depth for officers and NCOs behind the men making 18.5m x 2.275m. In line, with the official frontage per man, the battalion would be 111m x 2.27m. In battle this might stretch out to 139m (152 yards).
The example shows the way a French line was supposed to be formed after the 1808 reorganisation to six companies. The companies were in order of seniority from the right, with the grenadiers first, then the four fusilier companies, and finally the voltigeur (light) company. In line the battalion is 113.5m long and 2.3m deep.
Square
Squares were used to defend against cavalry. The square provided a hedge of bayonets on all four sides and, in addition, the defenders could fire out of each side.
Good quality cavalry and well managed cavalry could break squares, even squares formed by good infantry. It just wasn’t very common. The Dragoons of the King’s German Legion broke a steady French square at the Battle of García Hernández (23 July 1812) (Rothenberg, 1997). Similarly, the 20th Chasseur à Cheval broke a Austrian square at the Battle of Wagram (5–6 July 1809); the 20th were charging another square but deviated when they saw their final target fired at the 7th Chasseurs.
Squares had two disadvantages. The firepower was drastically reduced and, being massed, they were vulnerable to artillery fire (Rothenberg, 1997).
According to the French regulations an infantry line should have been able to form square within 100 seconds (napoleonistyka: Infantry Tactics and Combat (Part 2)). An attack column (colonne d’attaque) would only need 30 seconds because the companies in a column of full or half intervals would be able to manoeuvre more freely. In the field these times would have been longer.

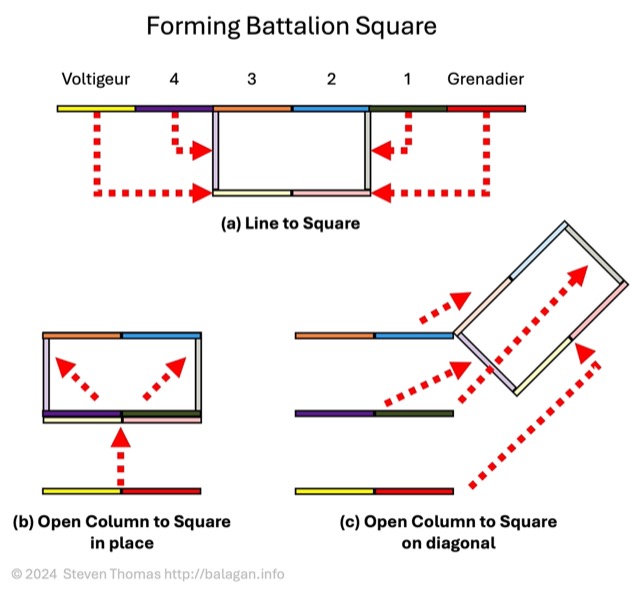

There were many ways to form a battalion ‘square’ (Griffith, 2007). I’ve shown the way a square was supposed to be formed after the 1808 reorganisation to six companies. The French calls this an square of six companies an “Egyptian square” (carré d’Egypte’) (Nafziger, 1996). Before 1808 the eight companies/platoons would form a symmetrical square.

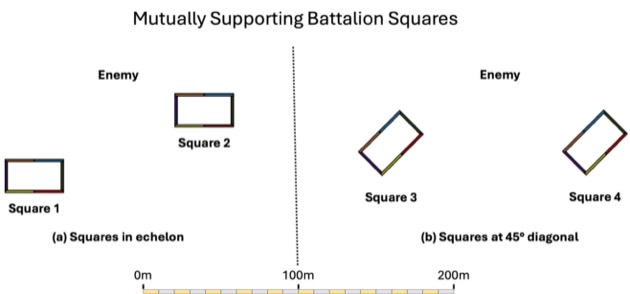

Multiple squares were intended to provide mutual support (Nafziger, 1996). Typically they would be placed 120 paces (90m) apart and adjacent squares were positioned so each could fire from any face and miss their neighbours. There were two ways to achieve this: either the squares were in echelon or the battalions formed square in a line but with each on the diagonal, 45° to their original front (Griffith, 2007).
Squares could move as fast as other formations (Nafziger, 1996) and could move either from one of the faces or from a corner (Haythornthwaite, 2008). [I assume squares would struggle in difficult terrain, like line, as the troops had to maintain close alignment or lose the benefit of the square. Having said that, cavalry would also struggle in difficult terrain so this was probably not tested in practice.]
Squares would form with the normal number of ranks, 2 for the British and 3 for the French. If a commander wanted a stronger formation, they could double the rows on each face to 4 or 6 ranks (Haythornthwaite, 2008).
Column
Marshal Michael Ney, in his “Instructions for the Troops Composing the Left Corps”, “makes it very clear that the column’s purpose is to provide a rapid and flexible formation for approaching the combat zone” (Arnold, 2004). The charges were to be conducted by lines.
Colonel Napier thought so too (Napier, 1828, p 258-259)
The column is undoubtedly excellent for all movements short of the actual charge
and
Well managed columns are the very soul of military operations, in them is the victory, and in them also is safety to be found after a defeat. The secret consists in knowing when and where to extend the front [i.e. to deploy into line]
Griffith (1990, p. 35) explains that the French saw columns as the only way to get into musket range, particularly over difficult terrain:
All French authorities were agreed that the column was the best formation for movement, especially over difficult terrain. In the Peninsula the terrain was often broken and hilly, and on some battlefields such as Busaco or the Pyrenean passes it was well-nigh impossible. To bring their men into musket range, therefore, French generals would naturally have employed the column, and it was only on arrival at this [musket] range that they would have been faced with the choice of whether or not to deploy.
From 1805-1806, while manoeuvring, French divisions would keep all of their battalions in column (Nosworthy, 1995). Adjacent columns would form at “deployment distance” (Griffiths, 2007). The deployment distance was to enable each column enough space to form line, if required. According to the regulations the minimum deployment distance equivalent to one ‘interval’, i.e. the frontage of a company/platoon (napoleonistyka: Infantry Tactics and Combat (Part 2)). Less than that and the column would suffer disorder. But that minimum deployment distance would only give a four company frontage for a French line post 1808, so presumably wider deployment distances were preferred. Unlike a line, column did not have to be perfectly aligned with their neighbours as they were not reliant on other units to provide flank support (Rothenberg, 1997). The combination of a narrow frontage and ability to move independently of their neighbours, meant columns would move both faster and over rough ground. They could get the troops to the enemy. In addition column could quickly change into other formations e.g. line and square; the bigger the interval between successive companies/platoons, the more easy it was to change formation. Ultimately columns offered rapid movement and flexibility. Although the French are famous for inventing the columnar system, all nations used both line and column. The difference was that the French kept their battalions in column longer to maximise the flexibility.
Armies found ways to speed up manoeuvring. One way was the change from fixed pivots to floating pivots (Nafziger, 1996). In a fixed pivot the rows stocked lock step in line. Where with a floating pivot, each segment marched in a direct line to its final destination; this approach was much faster. The French were using floating pivots from 1791. The British were slower to adapt and although used floating pivots were relying on the fixed pivot in 1804.
The weakness of the column was firepower (Haythornthwaite, 2001; Muir, 1998). But attacks by columns were meant to be preceded by an artillery bombardment and a swarm of skirmishers. When these did their job, attack columns could roll over the enemy.
In his analysis of many Napoleonic battles, Griffith (2007) found that 78% of French attacks were made in column. He does caveat that the attacking battalions may have started in column and then deployed into line. Griffith (2007, p. 23) explains:
It was conventional wisdom that a battalion attack in column was supposed to deploy into line … to beat down the enemy by fire before driving him back. However, if the deployment was left too late and the enemy were resolute, the battalion would be thrown back in confusion … and very vulnerable to counter-attack, as happened on many occasions when facing British infantry. There were also occasions, e.g. when facing weak opponents or one very confined ground, when a command would wish to remain in column … without making any attempt to deploy, simply pushing on by sheer force of ‘shock’
Casualties were concentrated on the companies at the head of the column (Muir, 1998). These companies took more casualties than if the battalion had been advancing in line. But, ironically, it was the men at the rear of the column who probably suffered the greatest psychological strain and were most likely to give way first.
Under heavy fire it was impossible for a column to deploy into line (Haythornthwaite, 2001). “British eye witness accounts from the Peninsula often mention attempts to move from column into line that were shot down or otherwise aborted before they could be completed” (Griffith, 2007, p. 24)
Columns by division were usually much wider than they were deep (Haythornthwaite, 2001). A French attack column of 1808 was 40 men wide and 18 deep (ignoring skirmishers).
Columns were described by the width, density and function (Nosworthy, 1995).
Column width
Columns were described by the how wide they were, with the width defined by one of the sub-divisions (Nosworthy, 1995). Battalion columns formed on a frontage of one or two companies or a section (Haythornthwaite, 2001, Muir, 1998, Nafziger, 1996).
Column of divisions (colonne par division): Frontage of a division of two companies/platoons, with other divisions of the battalion arrayed behind. The British called this a column of grand divisions. The French call these an attack column (colonne d’attaque) when formed on the centre companies (3 and 4).
Column of companies/platoons (colonne par peloton): Frontage of one platoon with other platoons of battalion arrayed behind; only 18.5m wide.
Column of sections (colonne par section): Frontage of section, where a section was a sub-division of a platoon/company; 2 sections to a French platoon and 4 sections to a British platoon.
Remember that company was the administrative unit and platoon was the equivalent tactical unit. Section was purely tactical as they all had to be the same width.
The French favoured the attack column (column of divisions formed on 3 and 4 company) in Europe. But in Spain, where the battalions would detach the voltiguers as skirmishers, they favoured the column of platoons for manoeuvre (Nafziger, 1996)
A march column could be a file wide but normally files were doubled when the column was formed (Nafziger, 1996). So a British two deep file would become a four wide march column. French and Spanish march columns would be six men wide because they started as a 3 deep line.
The French also had a battalion column (colonne par bataillon) (Nosworthy, 1995). In this post I’ve use “battalion column” to mean a battalion in a column formation. However, the French term colonne par bataillon meant a column comprising a number of battalions, with each battalion in line.
Column density
Density was the distance or interval between consecutive companies/divisions (Haythornthwaite, 2001; Nosworthy, 1995). Density resulted in these columns:
Column at full interval (colonne de distance entiere) / Open column
Column at half interval (colonne de demi-distance)
Column at quarter interval
Close column (colonne serée)
In open column the distance between companies equalled the frontage (Haythornthwaite, 2008). This was called an interval in France. With a company frontage of approximately 20 yards (18.25m), the distance between companies would be 20 yards. Open columns, with their large company wide intervals, were excellent for changing formation e.g. into line and square (Muir, 1998). Each company could easily wheel right or left to form a line at right-angles to the original direction of march.. But nobody expected open columns to fight.
In combat columns would close up to half distance or quarter distance. These were the most common types of column. In a ‘half distance’ column, the companies were 10 yards (9m) apart and in a ‘quarter distance’ column, the companies were 5 yards (4.5m)” (Haythornthwaite, 2008). The French instead talked about “intervals but it was the same concept.
In a close column the sub units were were 1 pace apart (British) or 3 paces (French) (Haythornthwaite, 2008). The French called this a ‘close column’ colonne serée or ‘column in mass’ colonne en masse or ‘battalion mass’ (bataillon en masse) (Nosworthy, 1995). This formation was used to oppose cavalry, pass a defile or bridge or to attack ‘in certain confused situations’.

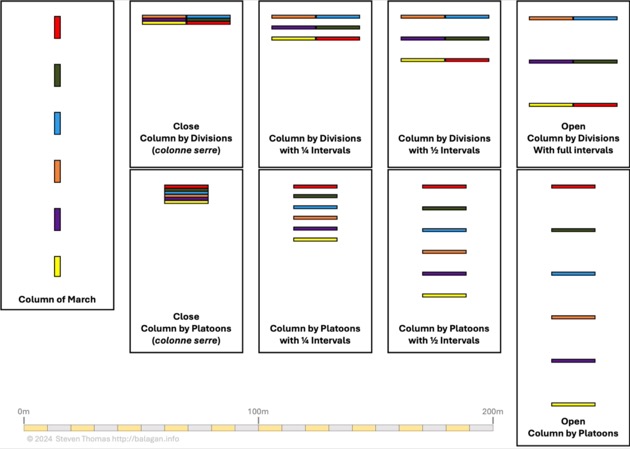

As you can see from the example, an open column by divisions has a similar depth to its width (39.3m) to allow companies to wheel out of formation. But others are much more compressed with the close column being at most 6.9m deep. For my example this is roughly 66 men wide and 9 deep.
Column function
A ‘column of route’ or ‘column of march’ was 4 files wide for battalion that normally formed 2 ranks deep and 6 files wide for those forming 3 ranks deep (Haythornthwaite, 2008). The length of the column of route never exceeded the length of the same formation in line, but could be shorter. It could quickly form a line or column of manoeuvre.
A ‘column of manoeuvre’ was used to move troops around (Nosworthy, 1995).
On occasion, ‘Columns of attack’ were hurled at the enemy (Nosworthy, 1995). More usually this term indicated an internal arrangement within the battalion. French doctrine of the time was to put the 2nd and 3rd platoons in the lead division to facilitate changes of formation; this was called an attack column (colonne d’attaque). Other nations, and earlier French practice, was to lead with the most senior company (grenadiers if present, otherwise 1st company of fusiliers).
A ‘column of waiting’ was for troops held in reserve (Nosworthy, 1995). They waited until the column adopted another function.
Blobs
Poorly trained troops, like early French levy, had less options. At Jemappes (6 Nov 1792) and Wattignies (15 Oct 1793) some French “lines dissolved into skirmishing bands, and some columns dissolved into formless masses or ‘blobs” (Griffith, 2007, p. 11). “Even professional soldiers would be thrown into a state of crisis as soon as they tried to perform changes of formation under close-range fire” (p. 17).
Ordre Mixte
French authorities often talked about mixed order (Ordre Mixte) and historians have picked up on this. Mixed order was a multi-battalion formation with some battalions in line and others in column.
I’ve already posted on Attack Column or ‘Ordre Mixte’: How did the French deploy at Albuera?. Basically, in that battle, they didn’t use Order Mixte, despite what some historians say.
Having said that, I’m sure, at the same time, in the same battle, different units formed combinations of line, column and square. Commanders would have done what was tactically expedient.
References
Arnold, J. R. (1982). “A Reappraisal of Column Versus Line in the Napoleonic Wars”. Journal of the Society for Army Historical Research 60(244), pp. 196-208.
Arnold, J. R. (2004). “A Reappraisal of Column Versus Line in the Peninsular War”. The Journal of Military History, 68(2):535-552. DOI:10.1353/jmh.2004.0006
Arnold, J. R. (2004) “A Reappraisal of Column Versus Line in the Peninsular War Oman and Historiography”, The Napoleon Series, August 2004. Available on-line at https://www.napoleon-series.org/military-info/organization/maida/c_maida.html.
Cronin, G. and Summerfield, S. (2014). Spanish Infantry of the Early Peninsular War: Uniforms, organisation and equipment of the Line and Militia. Ken Trotman.
Dempsey, G. (2008). Albuera 1811: The Bloodiest Battle of the Peninsular War. Frontline Books.
Edwards, P. (2008). Albuera: Wellington’s Fourth Peninsular Campaign, 1811. The Cromwell Press.
Esdaile, C. J. (2012). The Spanish Army in the Peninsular War (Reprised)
Griffith, P. (1990). Forward into Battle: Fighting Tactics from Waterloo to the Near Future. The Crowood Press Ltd.
Griffith, P. (2007). French Napoleonic Infantry Tactics 1792-1815 [Elite 159]. Osprey.
Haythornthwaite, P. J. (2001). Napoleonic Infantry. Cassell & Co.
Haythornthwaite, P. J. (2008). British Napoleonic Infantry Tactics 1792-1815 [Elite 164]. Osprey.
Muir, R. (1998). Tactics and the Experience of Battle in the Age of Napoleon. New Haven: Yale University Press.
Nafziger, G. (1996). Imperial Bayonets: Tactics of the Napoleonic Battery, Battalion and Brigade as found in contemporary regulations. Greenhill Books.
Napier, W. F. P. (1828). History of the War in the Peninsula and the South of France from the Year 1807 to the Year 1814, Vol. 1, pp. 258-9.
napoleonistyka: Infantry Tactics and Combat (Part 2)
Ney, Marshal M., (1834). Instructions for the Troops Comprising the Left Corps” reprinted in the Memoirs of Marshal Ney 2 vols. Philadelphia: E.L. Carey and A. Hart.
Nosworthy, B. (1995). Battle Tactics of Napoleon and His Enemies. London: Constable.
Oliver, M. and Partridge, R. (2007). The Battle of Albuera – 1811: Glorious Field of Grief. Pen & Sword Military.
Rogers, H. C. (1974). Napoleon’s Army. Pen & Sword.
Rothenberg, G. (1997). The Art of Warfare in the Age of Napoleon. Spellmount.
